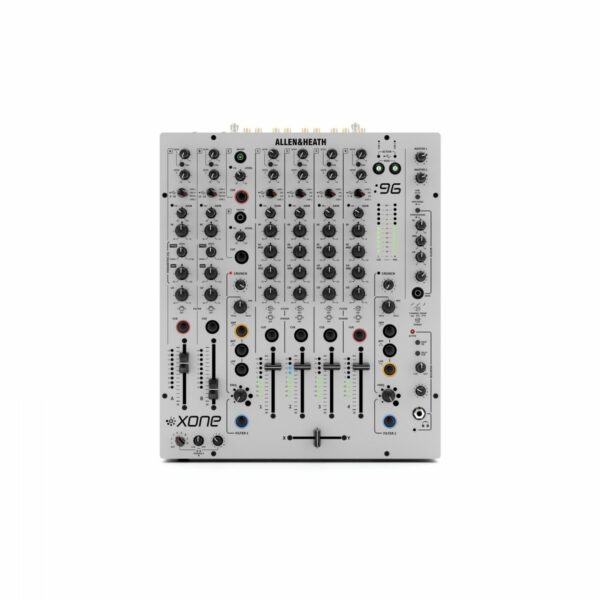

Xone:96 draws on our rich heritage to create our most advanced analogue mixer yet, engineered from the ground up to deliver the legendary Xone analogue sound in the most flexible, powerful format.
Xone:92 users will feel instantly at home with the Xone:96’s layout. All four main stereo input channels feature the latest incarnation of our industry standard Xone 4-band EQ, the choice of countless international DJ artists.
Stereo Return channels A and B are fully-featured, and incorporate an all-new 3-band parametric EQ design, giving you even more control over how you style your sound.
DUAL 32-BIT 24 CHANNEL SOUNDCARD
Unlock a world of creative possibilities. Xone:96 features two independent USB connections, each with 6 stereo inputs and outputs giving you a myriad of routing options.
State-of-the-art 96kHz/32-bit processing ensures the highest audio quality is passed between your laptops and the analogue engine.
Additionally the Xone:96 soundcard supports DVS control of Native Instruments’ TRAKTOR SCRATCH PRO 2 DJ software right out of the box.
DUAL XONE VCF FILTERS WITH CRUNCH
Nothing comes close to the sound and power of the Xone VCF filter. In Xone:96 we’ve refined this classic design, preserving its unmistakable sonic signature while taking its performance to the next level.
Alongside the classic HPF, BPF, LPF, resonance control and frequency sweep layout, there’s CRUNCH, a controlled harmonic distortion that sits pre-filter in the circuit to give you a powerful new effect.
Xone:96 lets you route all six main channels to either filter.
TUNED FOR THE CLUB
Underlining the professional club credentials of Xone:96 features two independent headphone CUE systems. Combined with the dual soundcard, these allow for back-to-back performances and smooth set transitions.
Dedicated booth outputs with 3-band booth EQ let you tune the monitor system perfectly.
And artists using complex, hybrid, multi-channel software will benefit from the simplicity of using a single USB to connect their computer to Xone:96.
Xone:96’s rear panel is fully-loaded with I/O.
Alongside all the analogue connections you’d expect to find, DJs will welcome the addition of 2 stereo sends, 4 stereo returns and a dedicated master insert.
Send 1 is switchable from Line to Hi-Z level, making it ideal for incorporating instrument level effects, like classic guitar pedals.
X-Link allows you to hook up Xone:K series controllers to the Xone:96 for hands-on control over your software, saving USB ports on your laptop.
MIDI I/O is catered for via the 5-pin connection on the rear panel, and via both USBs.
Built to last, Xone:96 features custom-designed 60mm linear VCA channel faders. Perfectly balanced, they offer smooth performance and precise control.
In the crossfader position, Xone:96 comes equipped with the industry-favourite Innofader Mini, complete with fader cut adjustment for our sharpest cut ever.
Channels 6 + 2
Channel 1-4, 4-Band EQ
Channel A-B, 3-Band Parametric EQ
USB Soundcards Dual 24 Channel (12 in / 12 out)
Hi-Speed USB2.0 / Mac Class Compliant
32bit / 96kHz
MIDI over USB
Line Inputs 4 x RCA (CH 1-4)
4 x 1/4″ TRS (CH A-D) Mono/Stereo
Phono Inputs 4 x RCA (CH 1-4)
LN/PH Switch for DVS
USB Inputs 6 x USB (CH 1-4 + CH A – CH B)
Mic Input 2 x XLR
Master Output 1 x XLR (Balanced)
Master 2 Output 1 x 1/4″ TRS (Balanced)
Booth Output 1 x 1/4″ TRS (Balanced)
Record Output 1 x RCA (Un-balanced)
Master Insert 1 x 1/4″ TRS
MIDI Out 1 x 5-Pin DIN
2 x 1/4″ TRS Send
4 x 1/4″ TRS Return
1 x LN/Hi-Z Switch (SND1/RTNA)
2 x VCF Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1-4 + CH A-B
CRUNCH (Controlled Harmonic Signal Distortion)
X-Link 1 x RJ45
2 x 1/4″
2 x 3.5mm
Split Cue Monitoring
Channel Faders 60mm VCA / Replaceable
Chanel Meters 9 Segment LED
Channel Fader Curve 3 Types
X-Fader InnoFADER / 45mm VCA / Replaceable
X-Fader Curve 3 Types
Earth Ground Terminals x 2
100 to 240V
Consumption 45W max
Mains Adaptor 3 pin IEC socket
Height 109mm / 4.3″
Width 336mm / 13.25″
Depth 410mm / 16.2″
Weight 7kg / 15.4 lbs.
