Recreation of a Roland Classic

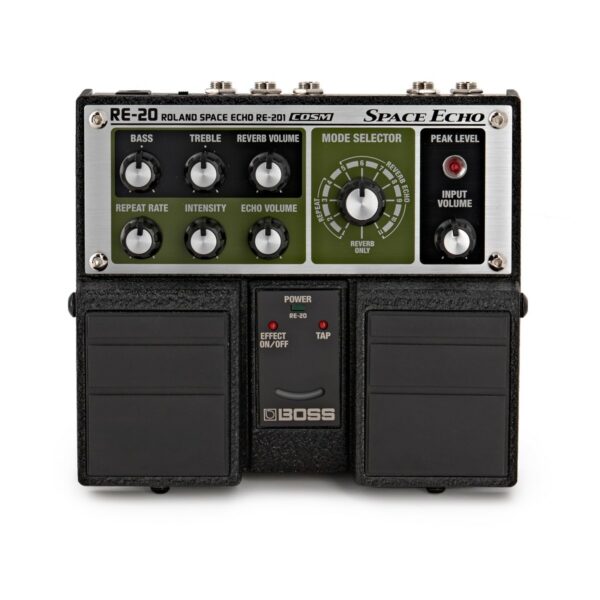

The Boss RE-20 is a recreation of the iconic Roland RE-201 Space Echo, using the innovative COSM technology to faithfully deliver every sonic detail and nuance the original produced. Everything about the RE-20 has been ripped straight from the Space Echo, from its spacious analogue tone to the faithful modelling of the original’s tape flutters and magnetic head saturation. The Boss Tape Echo also features the same 12 modes as the original, offering different combinations of echo and reverb. The only real difference between the RE-20 and the RE-201, besides its size, is the extended delay time, tap pedal for setting the delay time, and stompbox format.

Excellent Connectivity
Along with its stunning tonal capabilities, the RE-20 is fitted with an EXP input and stereo in/outputs, ensuring players can seamlessly integrate it into any rig and deliver incredible soundscapes. Use the stereo in/outputs to set up a variety of different rigs, connecting it to dual speakers or sent directly to a PA system. The EXP input allows players to connect an expression pedal, providing external control over the repeat rate, intensity, and echo level. The expression pedal can also be set to the twist mode, controlling the repeat rate and intensity simultaneously while making adjustments to the echo volume according to the set echo level.

About the Original RE-201 Tape Echo
The original Roland Space Echo RE-201 tape echo machine made its debut in 1974, taking the fragile and unreliable technology of the time and turning it into a robust and roadworthy device. Although it’s no longer in production, the RE Space Echo remains a world famous and widely acclaimed device, with a sound that still intrigues musicians of today. Everything about the Roland tape echo was loved by players, from its pleasing chorus effects that was created by the subtle wavering from the tape movement, to the characteristic compressed sound from the magnetic saturation of the tape.

Features
Amazing simulation of the famous Roland RE-201, with the spacious, analog tone of the original Space Echo
Faithful modeling of the RE-201’s tape flutter and magnetic head sound saturation
Tap input pedal allows delay time to be set by foot
Longer delay time than the original RE-201
Control parameters such as Repeat Rate, Intensity, and more via Expression pedal
Mode Selector knob with 12 placements just likes the original Space Echo
Specifications
General
Nominal Input Level: -20 dBu (Input Volume Knob: Centre), Max +4 dBu
Input Impedance: 1 Mohm
Nominal Output Level: -20 dBu
Output Impedance: 1 kohm
Recommended Load Impedance: 10 kohms or Greater
Display: Virtual Tape Display
Controls:
Pedal: Effect On/Off, Tap
Knobs: Bass, Treble, Reverb Volume, Repeat Rate, Intensity, Echo Volume, Mode Selector, Input Volume
Switch: Direct
Indicator: Power, Peak Level, Effect On/Off, Tap
Connectors:
Input Jacks A/Mono, B (1/4’’ Phone Type)
Output Jacks A/Mono, B (1/4’’ Phone Type)
EXP Pedal Jack (1/4’’ TRS Phone Type)
DC IN Jack (DC 9 V)
Power Supply:
Dry Battery (R6/LR6 (AA) Type) x 6
AC Adaptor (PSA Series: Sold Separately)
Current Draw: 75 mA (9V Max)
Expected Battery Life Under Continuous Use:
Carbon: 9 Hours
Alkaline: 32 hours
Accessories: Owner’s Manual, Leaflets, Dry Battery R6 (AA) Type (Carbon) x 6
Dimensions
Width: 6.1825’’ (173 mm)
Depth: 6.25’’ (158 mm)
Height: 2.25’’ (57 mm)
Weight: 1.2kg (2 lbs 11 oz)
