35 sound machines – from melody to drums and everything in between

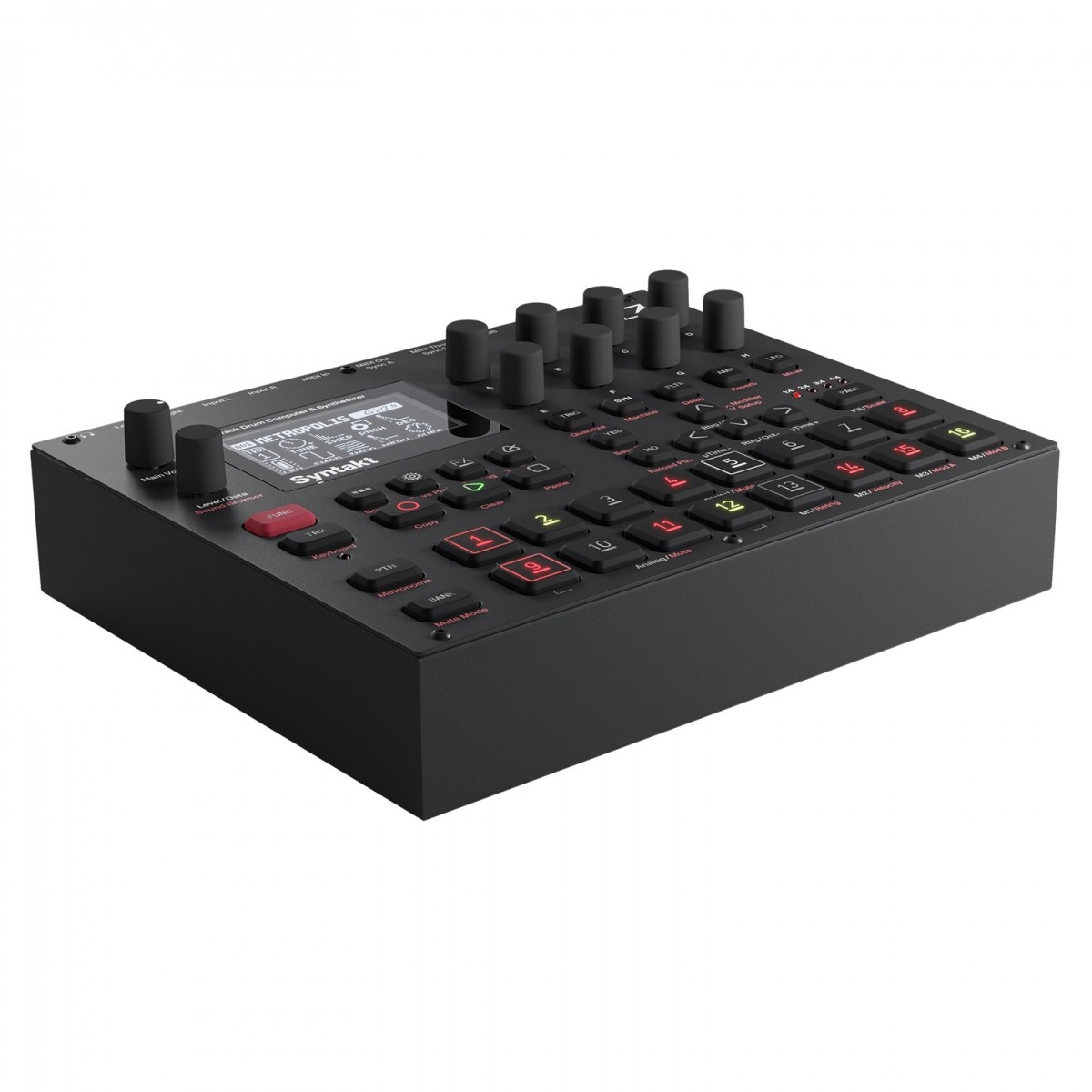

The ultimate creation station, Syntakt sets the bar high with its advanced sequencing, complex sound-shaping capabilities and an intuitive interface linking them all together. Building on the success of previous hardware, Elektron set out the create a sonic powerhouse with the development of the Syntakt. This 12-track drum computer and synthesizer utilises hybrid synthesis, incorporating elements from the digital and analog realms, so you get the best of both worlds. Featuring a world-class, 64-step sequencer, the Syntakt acts as a fully-featured musical instrument. Not only is it ideal for sequencing drum patterns, but the Syntakt is also so much more than your average hardware sequencer.
Providing you with a comprehensive toolset, the Elektron Syntakt opens a new world of sonic exploration, providing the ability to craft sound, sequencer and perform – all in on place. Comprised of four analog and eight digital tracks, the Syntakt can be used to create captivating melodies, massive bass sounds and aggressive drum sequences. Its huge sonic palette makes it a must-have for any serious music producer/live performer.
At the heart of the Syntakt are 35 sound-generating machines that span everything from drums to melody. Featuring a whole host of unique machines, the Syntakt also borrows some from Analog Rytm and Model:Cycles. These inherited machines have been revamped for the Syntakt, providing deeper control over your sound. The crisp OLED display shows you the tailor-made parameter controls designed for each machine. With animated icons and instant visual feedback, the Syntakt provides all the power you need to create everything from distorted basslines to immersive soundscapes.
What’s Included
Elektron Syntakt
Power supply (PSU-3c)
Elektron USB cable
Quick Guide
Exclusive artwork and epic stickers
Features
12-track drum computer and synthesizer
35 sound generators provide a varied sound palette
Onboard 64-step sequencer
Eight digital track with 10 selectable sound machines
Digital overdrive
Multimode and base-width filters
Two assignable LFOs per track
Three analog tracks with 15 selectable sound machines
Comprehensive connectivity including MIDI In, thru and out
Headphone output for private music creation/monitoring
Onboard USB connection – 24-bit/48kHz
Specifications
Digital track features x8
10x selectable machine:
1 x Bass drum
2 x Snare drum
1 x Cymbal/hihat
1 x Percussion
1 x Clap
4 x Tonal synth
1 x digital overdrive per track
1 x digital multimode filter per track
1 x digital base-width filter per track
2 x assignable LFOs per track
Switchable to MIDI machine
Analog Drum track features (x3)
15 x selectable machine:
6 x Bass drum
4 x Snare drum
2 x Rimshot
1 x Dual VCO synth
1 x Impulse
1 x Noise generator
1 x analog overdrive per track
1 x analog multimode filter per track
2 x assignable LFOs per track
Switchable to MIDI machine
Analog Cymbal track features (x1)
12 x selectable machine:
5 x Hihat
3 x Cymbal
1 x Impulse
1 x Noise Generator
1 x analog overdrive per track
1 x analog multimode filter per track
2 x assignable LFOs per track
Switchable to MIDI machine
Performance features
1 x Retrig modifier
1 x Velocity modifier
2 x Assignable trig modifiers
Keyboard mode with 36 different scales
MIDI Machine features
4 note polyphony per step
8 x assignable CC controls
1 x assignable LFOs per track
Hardware
Display: 128 x 64 pixel OLED screen
Inputs/Outputs:
2 x 1/4-inch impedance balanced audio out jacks
2 x 1/4-inch audio input jacks
1 x 1/4-inch stereo headphone jack
Audio Quality: 48 kHz, 24-bit D/A and A/D converters
USB: High-speed USB 2.0 port
MIDI: MIDI In/Out/Thru with DIN Sync out
Physical
Construction: Sturdy steel casing
Dimensions (WxDxH): 215 x 176 x 63mm
Weight (approx.): 1.53 kg (3.6 lbs)
Mounting: 100 x 100 mm VES mounting holes. M4.
