Beskrivelse
Features
Pro-Quality USB Audio Interface
Transparent uPre Preamps Provide Hi-Fidelity Audio
Fully Programmable Mixing Capabilities
Flexible Routing
Individual DSP per Channel
Works in Standalone or Computer Modes
Functions as a Opto-Tactile Control Surface
Control Surface Compatible with any DAW
Specifications
Audio
Input Channels: 8 x Balanced Inputs
Input Volume (Max): +28dBu
Output Channels: 10 x Outputs (2 Balanced)
Bit Depth: 24-Bit (AKM Converters)
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz

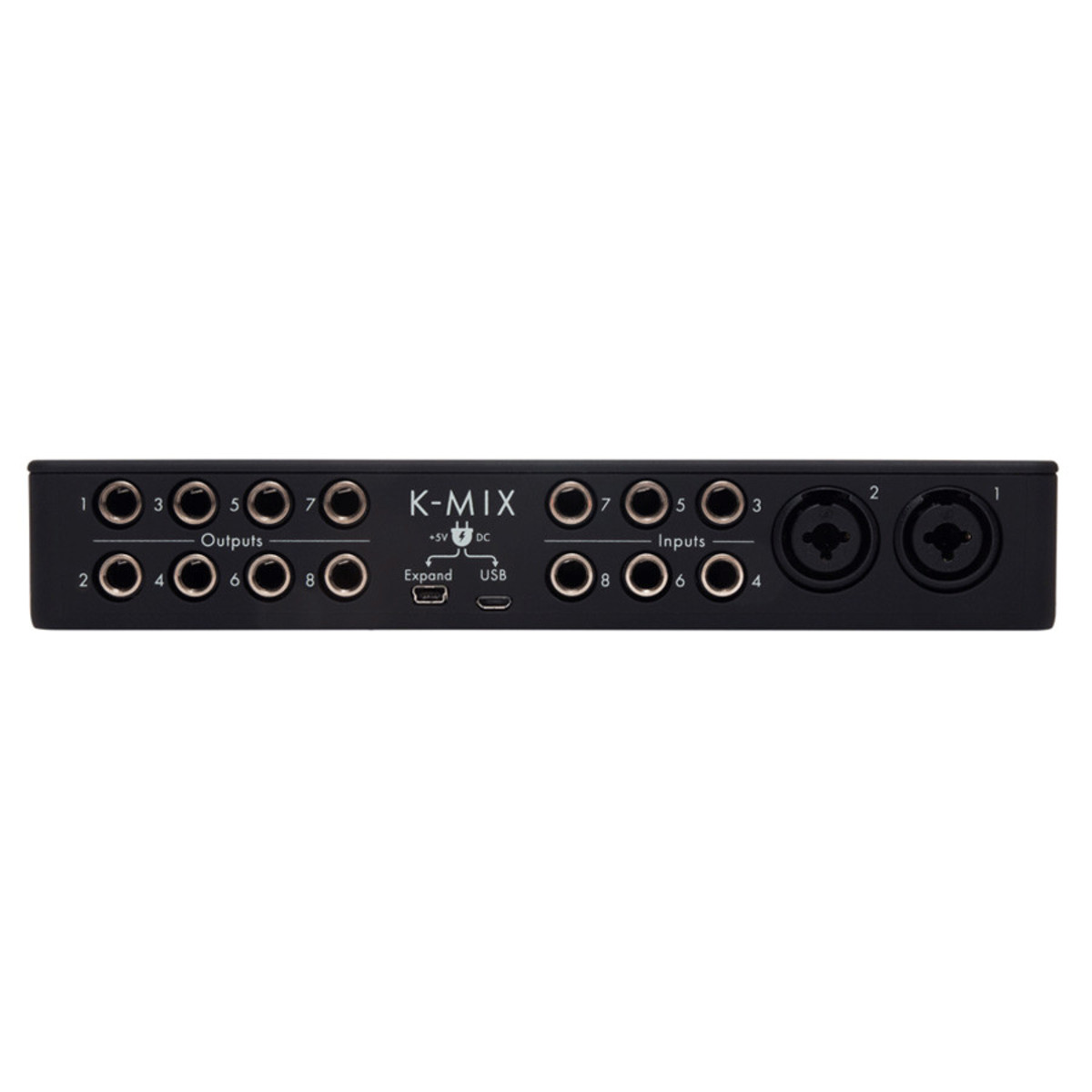

Connections
Analog Inputs: 2 x XLR/TRS Combo Jacks (Balanced), 6 x 1/4″ TRS Line (Balanced)
Analog Outputs: 8 x 1/4″ TRS (Balanced)
Digital: 1 x Micro USB, 1 x Mini USB
Micro USB: Audio I/O, MIDI I/O, Power
Mini USB: MIDI I/O (via KMI Expander), Power

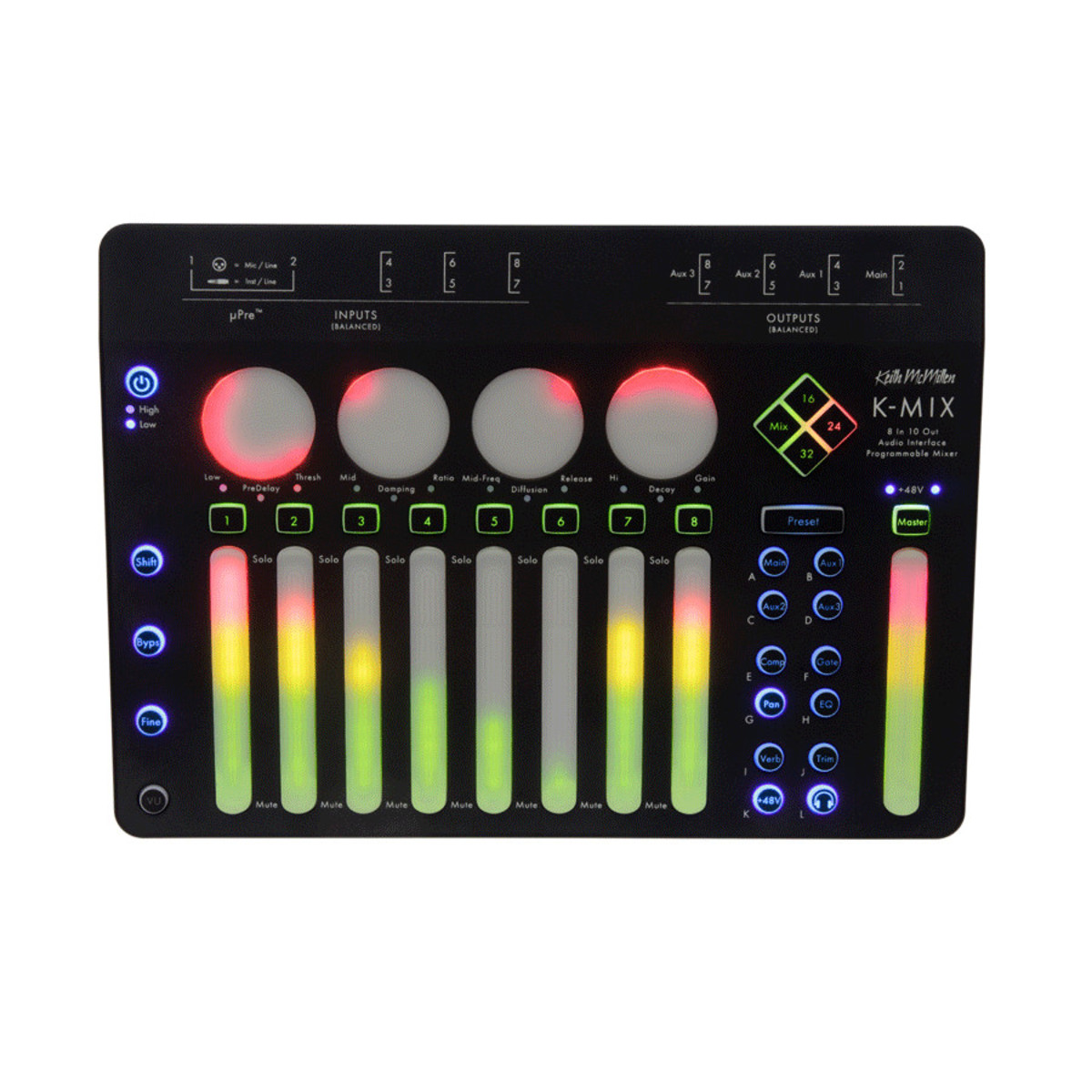

Control
Faders: 8 x Channel Faders, 1 x Master Fader (MIDI Position CC Output on all Faders)
Fader LED Indicators: 12 per Channel Fader, 24 x Master Fader
Rotary Encoders: 4 x 360° Encoders (MIDI Position CC Output on all Faders)
Rotary LED Indicators: 16 per Rotary Encoder
Buttons: 9 x Channel Select, 4 x Bank Select, 17 x Function (MIDI Note Output on all Buttons)
Mic Preamps
Preamps: 2 x Ultra Low-Noise uPre (Microphone Preamps)
Phantom Power: +48V
Gain: +60dB (Additional Gain)
THD+N (Unweighted): -107.6 dBu @ 0dB (20Hz – 20kHz)
THD+N (A Weighted): -120.5 dBu @ 0dB (20Hz – 20kHz)
EIN: -121.5dBu, 150 Ohms @ 20Hz – 20kHz
Frequency Response (44.1kHz): +/- 0.13dB @ 20Hz – 20kHz
Frequency Response (96kHz): +/- 0.56dB @ 20Hz – 40kHz
Processing
Equalization: 3-Band Semi Parametric (+/-18dB Cut/Boost)
Compressor: Compressor/Limiter (Per Channel) – Adjustable Threshold, Attack, Release, Makeup Gain
Gate: Noise Gate (Per Channel) – Adjustable Threshold, Attack, Release, Gain Reduction
Reverb: Master Reverb (Individual Sends Per Channel)
Surround: Quadraphonic, 5.1, 7.1, Octophonic (Channel Assignable)
