Beskrivelse
Superior handling and audio quality

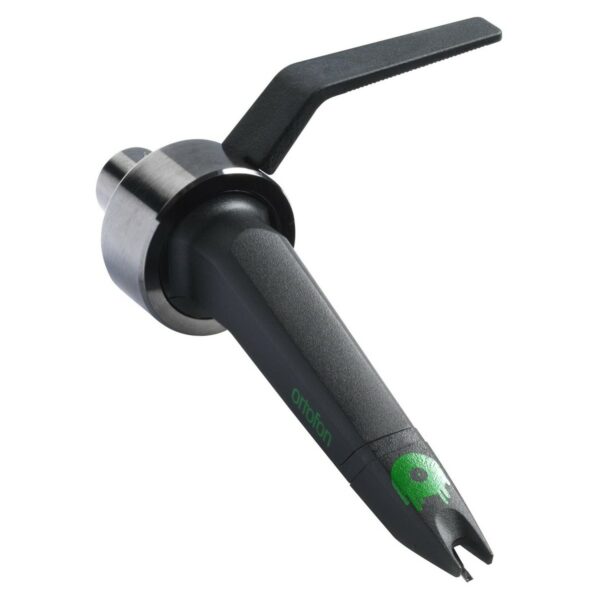

The Concorde Mix MKII DJ Cartridge provides optimised audio performance, with exceptional value for money. The price-to-performance ratio makes the cartridge ideal for all DJs, no matter your skill set. The specialised stylus provides a wide frequency range, designed to capture every nuance from your music.
The cartridge is comprised of a high-quality spherical stylus with a solid cantilever, housed in a sleek and stylish enclosure. It delivers a reasonable output with improved tracking ability, ideal for scratching and back-cueing records.
Reviews
“The stylus finds its groove right away, pun totally intended. It locks down into place and grabs at the record’s surface without feeling like it’s going to skitter as if someone had been messing with your anti-skate mechanism. It’s loud and clear too, with what Ortofon claim to be a 10 mV output that delivers a full frequency response and brings your low frequency basslines to life.» – Rob Gee – Mixdownmag.com
Features
Provides great performance and durability
High-quality spherical stylus, solid cantilever designed to serve general purposes
Offers both reasonable output, premium-grade audio fidelity and good tracking ability for any style of music
Transparent sound across the spectrum
Excellent handling ability
Specifications
Output Voltage at 1000Hz, 5cm/sec: – 6 mV
Channel Balance at 1kHz: 1.5 dB
Channel Separation at 1kHz: 20 dB
Channel Separation at 15 kHz: 15 dB
Frequency Range at -3dB: 20-20.000 Hz
Tracking Ability at 315 Hz at Recommended Tracking Force: 100 μm
Compliance, Dynamic Lateral : 14 μm/m N
Stylus Type: Spherical R 18 μm
Tracking Force Range: 2 – 4 g
Tracking Force Recommended: 3 g
