Beskrivelse
User friendly and innovative

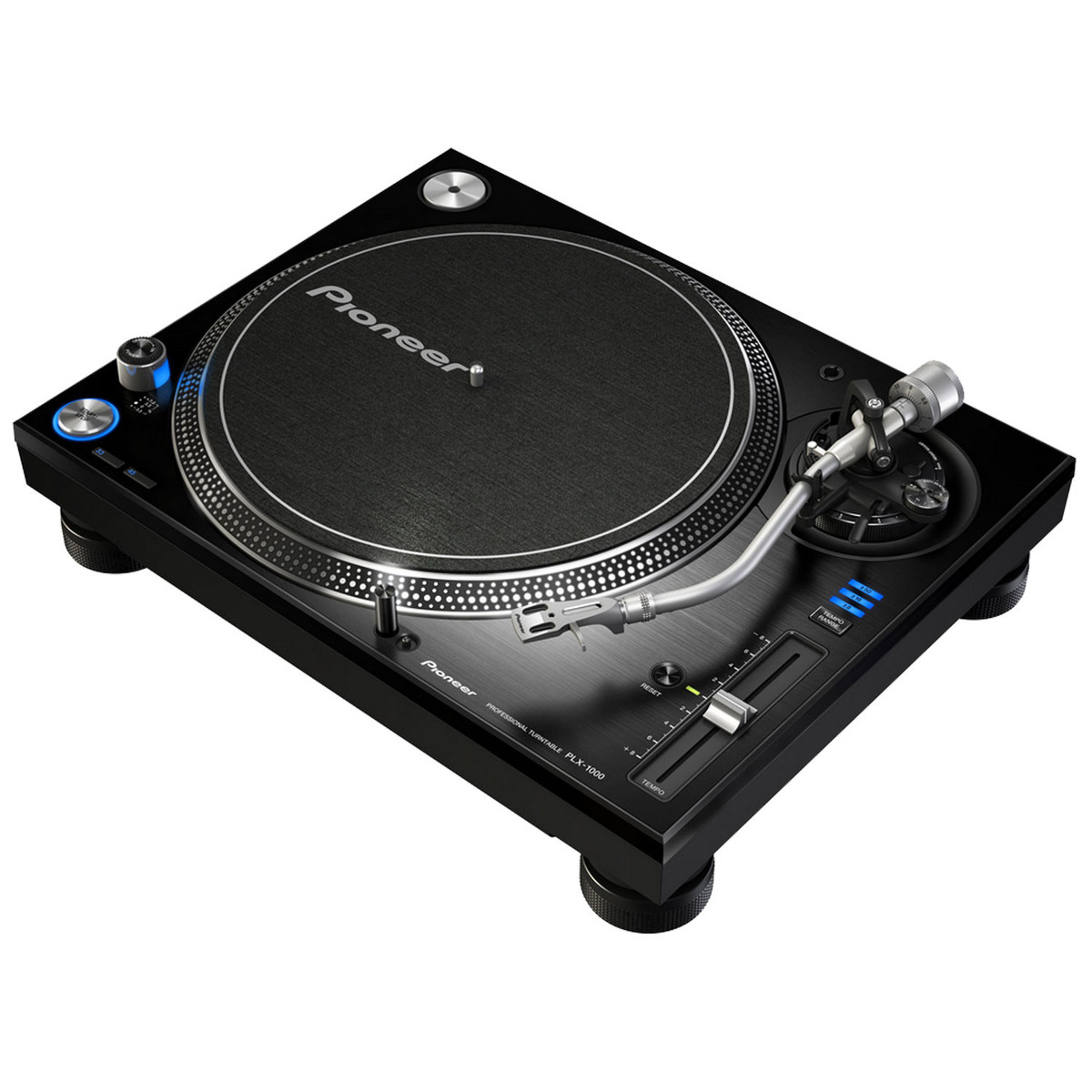

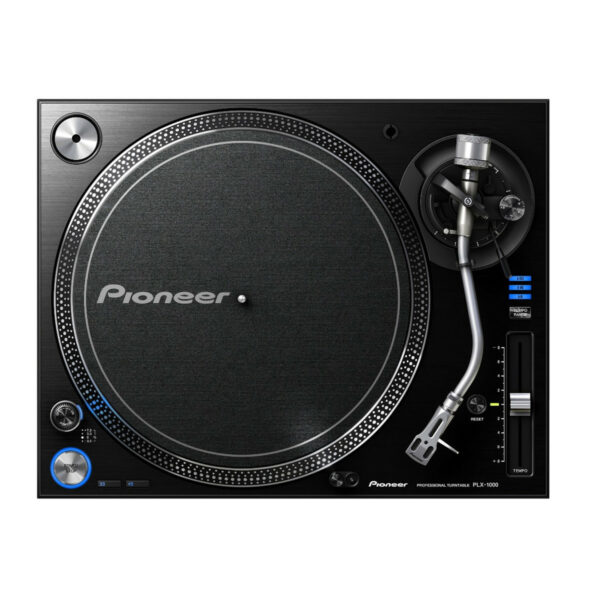

The Pioneer PLX-1000 Analog DJ Turntable is the result of many years of experience and consumer investigation to achieve a truly user-friendly and innovative analog DJ turntable that excels in all live environments.
Extensive tempo control
Featuring a simplistic and sleek control design the Pioneer PLX-1000 provides an extensive tempo control fader allowing for tempo manipulations from plus or minus 8 to 50 speed for advanced adaptability when crossfading and cutting tracks whilst also incorporating an extremely practical tempo reset button for immediate tempo reboots.
Reduced external vibration
Using a combination of heavy mass die-cast zinc, 8mm resin, springs, rubber and other vibration dampening materials the PLX-1000 absorbs and isolates any unwanted external vibrations common in clubs and live scenarios whilst retaining an extremely durable construction.
Authentic tone

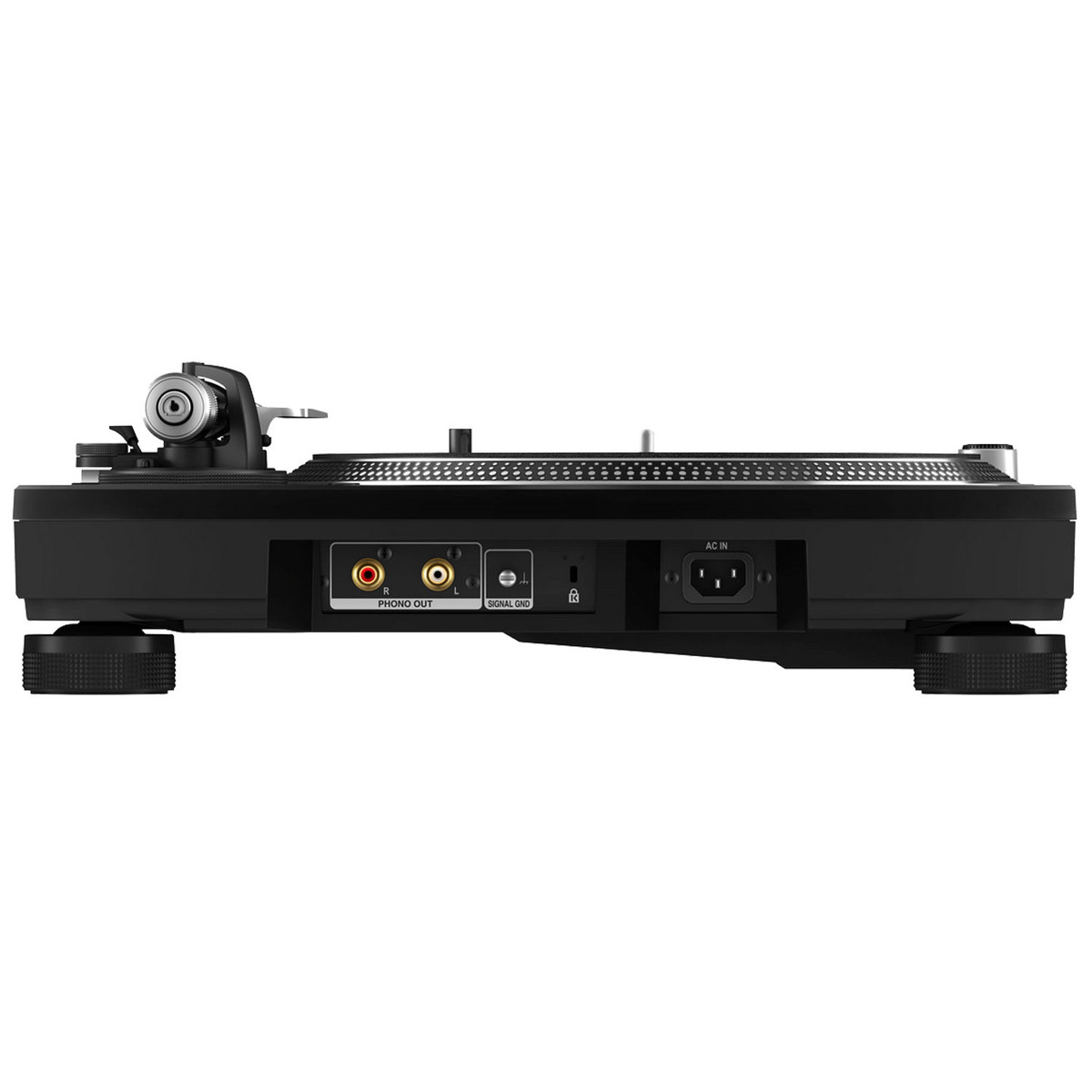

Incorporating a truly stable platter that can reach its standard rotation speed in just 0.3 seconds and innovative rubber tubing inside the tone arm to minimize howling the PLX-1000 produces a crisp and authentic tone which is further benefited by the gold plated RCA outputs that allow for detachable cables for easy transportation and replacements.
Specifications
Turntable
Drive Method: Quartz Lock Servo Type Direct Drive
Motor: 3-Phase Brushless DC Motor
Braking System: Electronic Brake
Rotation Speed: 33 1/3 rpm, 45 rpm
Rotation Speed Adjustment Range: +/- 8 , +/-16 , +/-50
Wow and Flutter: 0.1 or less WRMS (JIS WTD)
S/N Ratio: 70dB (DIN-B)
Turntable: Aluminium Die-casting Diameter – 332mm
Starting Torque: 4.5Kg .cm or more
Start Time: 0.3 Seconds (at 33 1/3 rpm)
Tone Arm
Arm Type: Universal Type S-Shape, Gimbal-Supported Type Bearing Structure, Static Balance Type
Effective Length: 230mm
Overhang: 15mm
Tracking Error: Within 3 Degrees
Arm Height Adjustment Range: 6mm
Stylus Pressure Variable Range: 0g – 4.0g (1 scale 0.1g)
Proper Cartridge Weight: 3.5g to 13g (Single Cartridge)
When Shell Weight Is Used: 3.5g to 6.5g
When Only Balance Weight Is Used: 6.0g to 10g
When Sub Weight Is Used: 9.5g to 13g
Main Unit
Main Unit Weight: 13.1 Kg
Maximum Dimensions: 453 x 353 x 159mm (W x D x H)
Output: 1 x RCA
Included Accessories
Slip Mat
Slip Sheet
Dust Cover
Balance Weight
Head Shell
Sub Weight
Shell Weight
Adapter for EP Record
Power Chord
Audio Cable
Ground Wire
Operating Instructions
