Beskrivelse
Rebirth Of A Legend

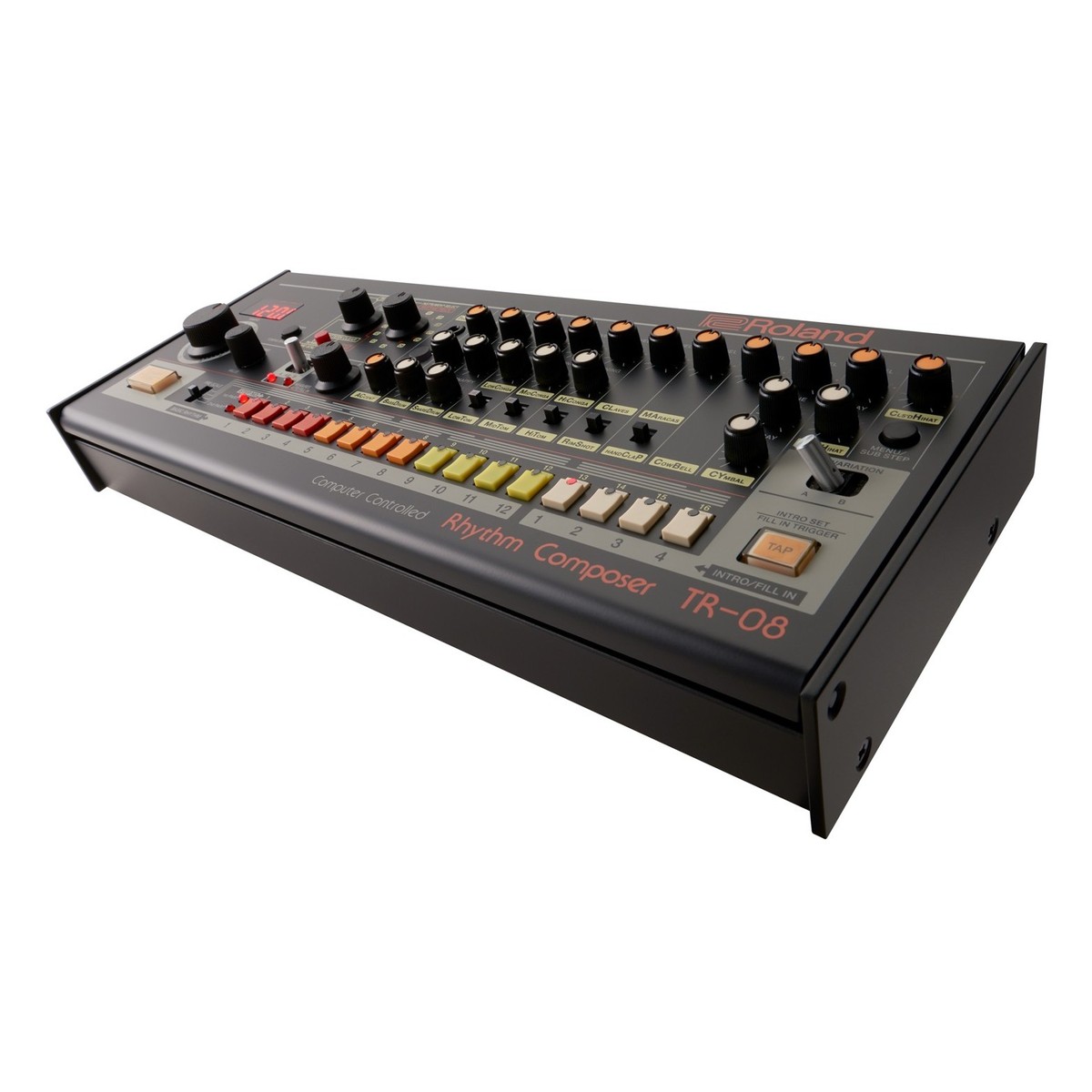

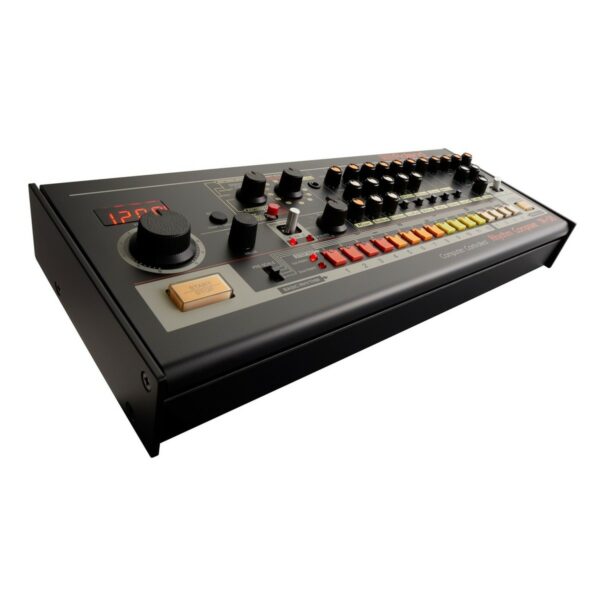

The TR-08 is based on the revered TR-808 drum machine, which was first released in 1980 and discontinued in 1983. Up until now, acquiring a true Roland TR-808 would have cost you rather a large sum of money, however the TR-08 changes everything. This incredibly powerful drum machine delivers an incredibly precise replica of the original instrument. Featuring all of the same astounding sonic characteristics and quirks of the original, the TR-08 packs an identical reproduction of the 808’s interface with complete authenticity into a scaled-down format. Don’t let the compact size deceive you though, the Roland TR-08 Rhythm Composer features everything the TR-808 could do, and more. Take control of the authentic knobs, buttons, and switches, and unleash the power one of the most distinctive and unique drum machines in the history of music.
Proprietary Analog Circuit Behavior
Roland’s innovative ACB technology enables the TR-08 to perfectly recreate the sound of the original drum machine by being able to accurately model each analog circuit, right down to the component level. That means that not only does the TR-08 look authentic, but the sound and response of this intuitive, modern reproduction is identical to that of its bigger brother. ACB technology faithfully captures the sound and feel of Roland’s classic instruments using the original design specifications. A detailed, part-by-part analysis of the original machines enables Roland to recreate the circuits perfectly to deliver the same incredible sonic characteristics that made the originals great, but in a modern and intelligent format.
Versatile Connection of External Gear
The Roland TR-08 Rhythm Composer is designed to provide simple yet powerful connectivity with its range of multi-purpose outputs. The outputs include a main stereo mini-jack output which can be configured to send the selected instrument to the right channel, while the other instrument’s output can be sent to the left. The USB and MIDI ports allow for syncing and controlling other gear as well as connection with your DAW. Mix input and trigger output can also be reconfigured to route external audio and even drive vintage analog synths, enabling you to harness a broader scope of audio possibilities whilst working with your TR-08.
Features
Authentic recreation of the drum machine that shaped so many musical styles: The Roland TR-808
Genuine sonic characteristics, response, and feel of the original

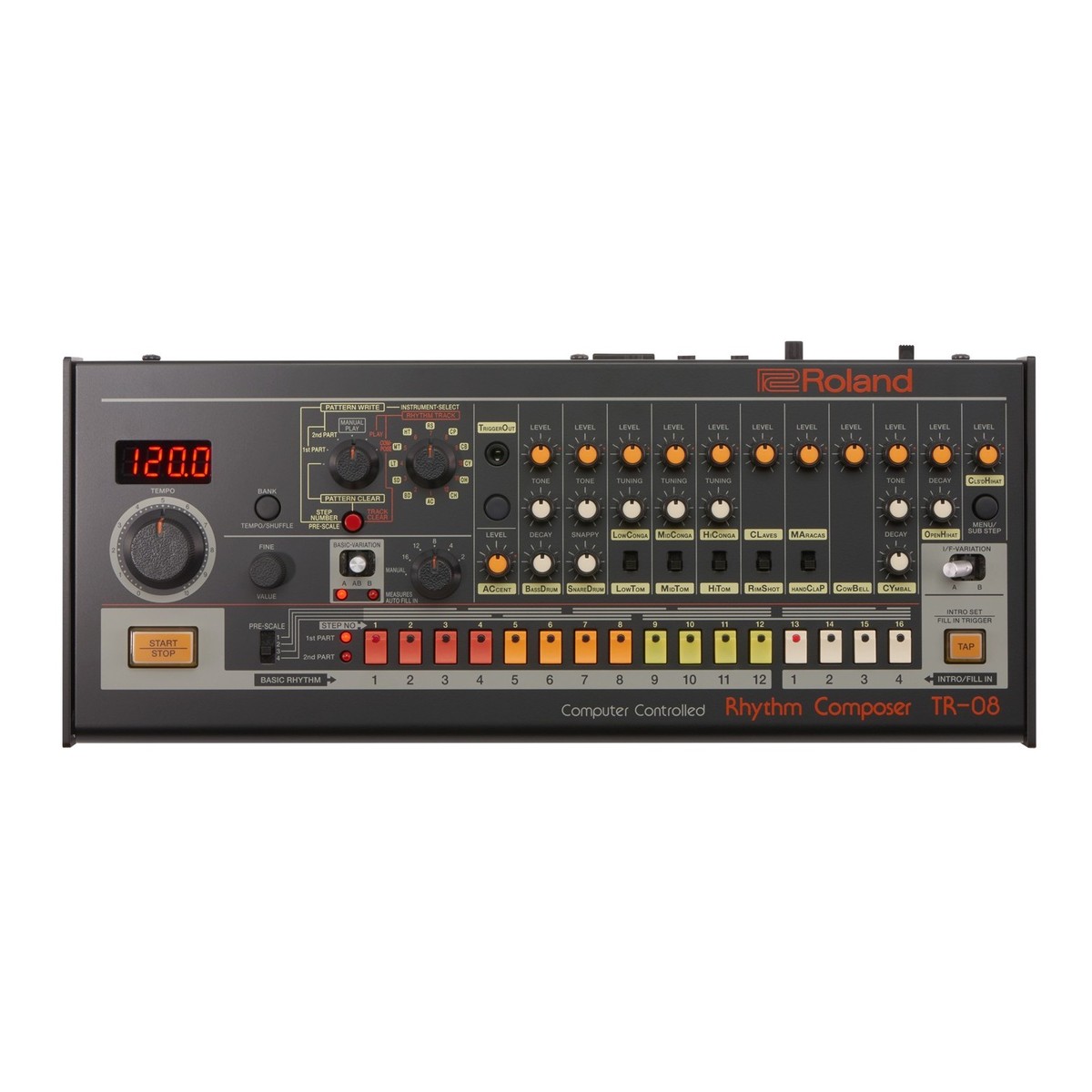

Replicated user interface that is true to the TR-808’s pioneering style
Interface design ensures true hands-on control
Added features for certain instruments, including a Compressor, Pan, Tune control, and Gain control
16-step sequencer provides astonishingly detailed pattern programming with 16 sub-steps to provide plenty of options for creative sequencing
Classic Step and Tap write modes give you plenty of choice and control over your drum sequences
Vibrant LED display ensures simplistic navigation and precise tempo/shuffle control
High-quality, rugged construction with a durable and rigid front panel made from metal
USB audio signals can be split into 10 separate outputs
Beats can be played whilst switching between the different write modes
Control external instruments using a versatile dedicated trigger output
Specifications
User Memory
Pattern, Intro/Fill-In: 16 Bank (12 x 16 Pattern, 4 x 16 Intro/Fill-In)
Sequencer Steps
Steps: 16 Steps with 16 Sub-Steps
Instruments
BD: Bass Drum
SD: Snare Drum
LC: Low Conga
MC: Mid Conga
HC: Hi Conga
LT: Low Tom
MT: Mid Tom
HT: Hi Tom
CL: Claves
RS: Rim Shot
MA: Maracas
CP: Hand Clap
CB: Cow Bell
CY: Cymbal
OH: Open Hi-Hat
CH: Closed Hi-Hat
Controls
Volume Knob
Start/Stop Button
Tempo Knob
Bank/Tempo/Shuffle Button
Fine/Value Knob
Mode Selection Knob
Pattern Clear
Pattern Write 1st Part/2nd Part
Manual Play
Rhythm Track Play
Compose
Instrument/Track Selection Knob
Clear Button
Basic Variation Selector Switch & Indicator
Auto Fill-In Selector Knob
Trigger Out Track Select Button
Accent Level Knob
Instrument Level Knob (All Instruments)
Tone Control Knob (BD, SD, CY)
Decay Control Knob (BC, CY, OH)
Snappy Control Knob (SD)
Tuning Control Knob (LC/LT, MC/MT, HC/HT)
Voice Selector Switch (LC/LT, MC/MT, HC/HT, CL/RS, MA/CP)
Pre-Scale Selector Switch
Step Button (1-16) & Indicator
I/F Variation Switch
Tap Button
Menu/Sub-Step Button
1st Part/2nd Part Indicator
Power Switch
Effects
Compression
Indicators
7 Segments, 4 Characters (LED)

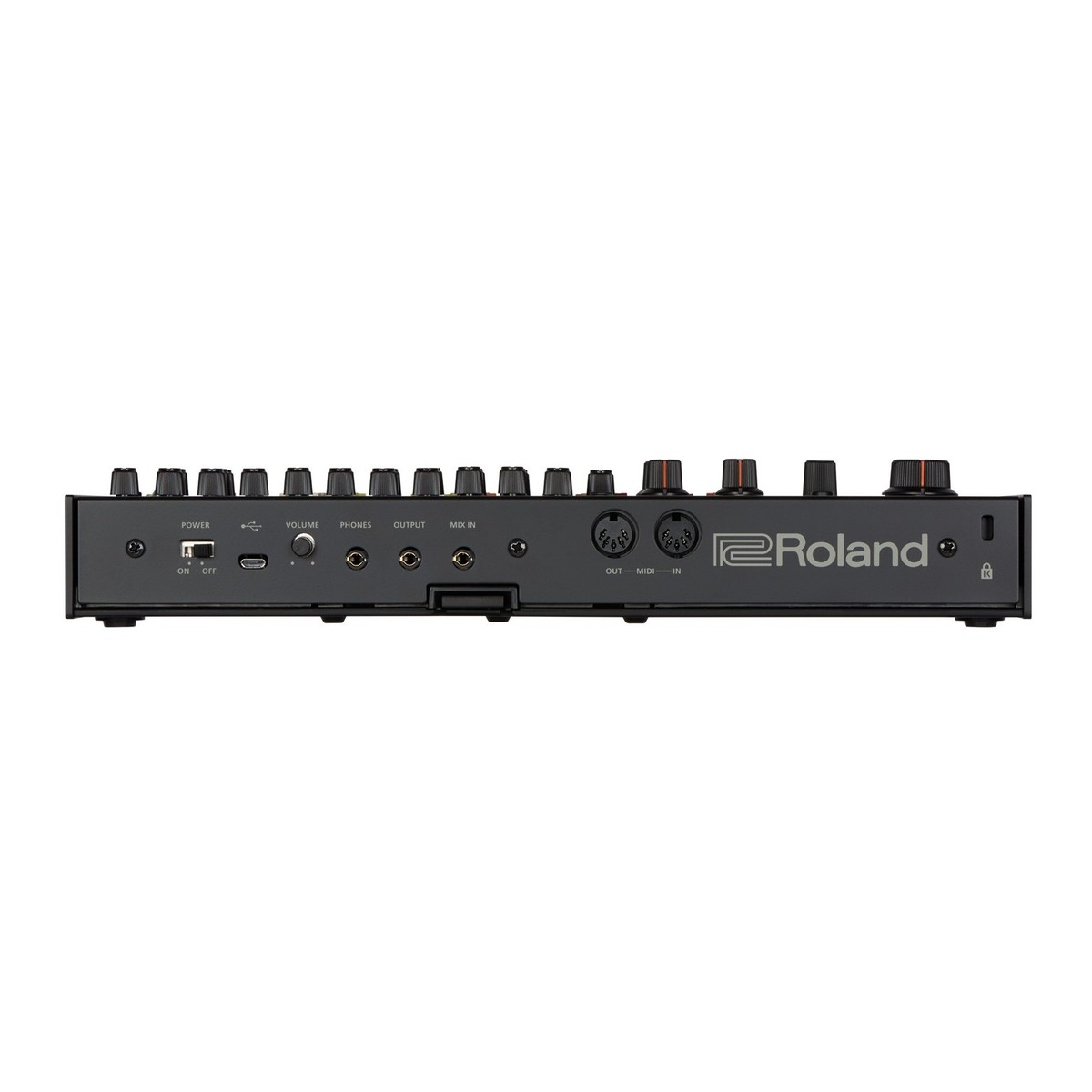

Connections
Trigger Out: Mono Mini-Jack
Headphones: Stereo Mini-Jack
Output: Stereo Mini-Jack
Mix In: Stereo Mini-Jack
MINI: IN/OUT
USB: Micro-B Type (Audio, MIDI)
Power
Rechargeable Ni-MH Battery (AA, HR6) x 4 (Approx. 6 hours life under continuous use, dependent on battery specifications, capacity, and conditions of use)
Alkaline Batters (AA, LR6) x 4
USB Bus Power (500mA Current Draw)
General
Dimensions: 308mm (W) x 130mm (D) x 51mm (H) / 12.125» (W) x 5.125» (D) x 2.0625» (H)
Weight: 1.3kg / 2lbs 14oz. (Including batteries & Boutique Dock)
Accessories:
Boutique Dock (DK-01, Black)
Owner’s Manual
DK-01 Owner’s Manual
«Using The Unit Safely» Leaflet
4 x Alkaline Battery (AA, LR6)
