Exceptional audio fidelity on the move

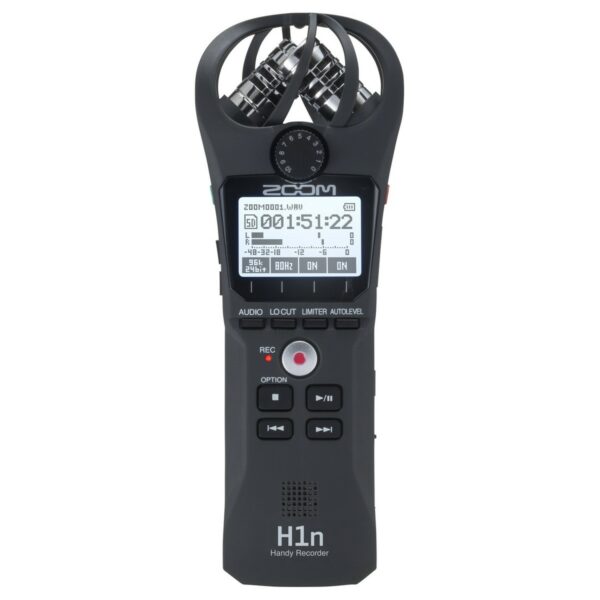

The Zoom H1n Recorder builds on the success of the original Zoom H1, featuring a wide range of enhancements and improvements. The H1n features the same X/Y microphone configuration as its predecessor, allowing you to capture recordings up to 24-bit/96kHz sample rates for optimal audio fidelity.
The X/Y microphones provide an immersive stereo field that captures the essence of your source audio, ideal for everything from live performances to capturing your own music, podcasting and more. It can also record in both WAV and various MP3 formats for optimal versatility. The X/Y microphones are stereo condenser microphones in the 90-degree stereo format.
One touch-controls and new improvements
One of the most prominent modifications is the new layout and user interface, comprised of a new monochromatic 1.25-inch LCD display and one-touch button controls. The new one-touch controls make it easier than ever to record songs, samples, live performance, lectures, podcasts and more.
The new monochromatic LCD display makes it easier to monitor your settings and even in the brightest lighting conditions, ideal for use outdoors and more. The protective mic enclosure is also a new addition, with a streamlined body and matte finish.
Never miss the moment
The Zoom H1n also boasts a wide range of on-board features to enhance and optimise your audio recordings. Limiter and auto-level buttons are included for optimising your audio performance, ensuring your sounds do not clip and distort, even when recording high level audio sources.
The recorder provides 120dB SPL of distortion-free recording for a range of applications. The Voice Emphasize Filter and Stereo overdubbing functions make it easier to cater to various recording situations.
The stereo overdubbing function allows you to add unlimited layers of audio for richer and fuller sounding recordings. The Playback Speed function allows you to transcribe music and other recording without altering the pitch. Other functions include auto-record, pre-record and self-timer, ensuring you capture the moment without fail.
Streamlined body with matte finish and newly designed protective mic enclosure
1.25-inch monochrome LCD display
One-touch button controls
Localized and intuitive menus for easy operation
Built-in stereo condenser microphones in 90-degree X/Y stereo format
Stereo 1/8″ Mic/Line In mini phone jack
Stereo 1/8″ Phone/Line Output jack with dedicated volume control
Limiter and Auto-Level buttons for input signal and distortion-free recording up to 120dB SPL
Playback Speed Control, Voice Emphasize Filter, and Stereo overdubbing functions
Auto-Record, Pre-Record, and Self-Timer functions
Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
Test Tone and Slate Tone generator for film-making use with DSLR and video cameras
Records directly to microSD and microSDHC cards up to 32 GB
Handles up to 120 dB SPL for distortion-free recording
Loop playback with user-defined start and stop points
Micro USB port for data exchange to and from computer and use as an audio interface
Simultaneous Playback Tracks: 2
Simultaneous Recording Tracks: 2
Recording/Playback Format: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit, MP3: 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
A/D Conversion: 24-bit, 128x oversampling
D/A Conversion:24-bit, 128x oversampling
Signal Processing: 32-bit
Built-in Speaker: Built-in 500 mW mono speaker
Output Impedance: 8 ohms
Outputs: Standard stereo phone jack (combined line/headphones)
Rated Output Level: 20 mW + 20 mW into 32 ohms load
Output Impedance: 10 k ohms or more
USB: Micro USB port
Mass Storage Class Operation: USB 2.0 high speed
Audio Interface Operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
Transfer Method: asynchronous
Power Requirements: 2 AAA batteries (alkaline, nickel-metal hydride rechargeable, or lithium) Sold Separately
Dimensions: 1.9 in (W) x 5.4 in (D) x 1.2 in (H), 50 mm (W) × 137.5 mm (D) × 32 mm (H)
Weight: 0.13 lbs / 60 g (without batteries)
