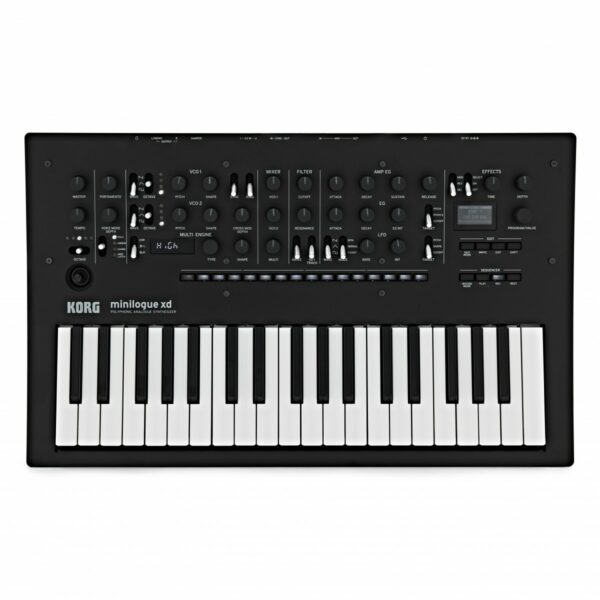

Analog circuitry delivers a natural and powerful sound
Featuring best in class analog circuitry. The Korg Minilogue XD is a step ahead of the curve. The Minilogue synthesizer features a four-voice polyphonic synthesis circuit, which gives you the best sound possible for an instrument at such a small size. The efficient voice structure gives you a logical step-by-step sound design process and also comes with sync/ring, cross modulation, and a two pole feature. The scope of possibilities with the minilogue contradicts its size. You can obtain any sound you want, from ambient, atmospheric pads to pulsing EDM leads. All with a layer of grit and warmth so typical of analog based synthesizers.
High-grade, built-in effects
Take your sound design further, and deeper. The multi-engine delivers a digital sound providing your sound design with even more possibilities. The coupling of analog and digital offers a huge amount of scope for creating sounds and music. Featuring a Noise Generator, a VPM Oscillator, and even your own customer User Oscillators, downloaded from the internet.
The 32-bit floating point DSP processing opens up a world of effects for you to use on your sounds. Modulation effects, reverb, and delays can all be used simultaneously. This gives you the finishing touch to your sounds and can completely change your overall output just via the addition of a little bit reverb or delay. Chorus’, warm tape delay, and a wide range of reverbs. The Minilogue XD is a step up from the competition.
Step it up – onboard 16 step sequencer
Providing you with 16 steps of sequencing power the Minilogue XD is the perfect performance machine. Select your steps one by one, allowing for complete control over the automation of pitch and rhythm. Korg’s Motion sequence lets you record movements of four different knobs, giving you incredible automation power all from the Minilogue.
Intuitive and creative
The layout of the Minilogue is second to none. It gives you a full overview of what is possible with this synthesizer. Everything is laid out logically, giving you a very efficient sound design process. There are a lot of little features too, like the joystick. The joystick gives you 360-degree control over pitch bending, modulation. The Minilogue also features an incredibly detailed oscillator view. Allowing you to see a visual representation of your waveshape, offering a brilliant reference for crafting your sounds, and of course, it looks very cool too.
High quality digital effects
Fully customizable user defined parameters
Joystick pitch control
Polyphonic step sequencer controlled
Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analog sound generator + Multi digital sound generator (Noise, VPM, User)
4 voices Programs 500 voices (more than 200 preload, 300 user programs)
Each program provides a program sort function that includes voice mode settings. Favorite function built in.
4 (POLY, UNISON, CHORD, ARP / LATCH)
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
Main Synthesis Parameters: VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2: Wave (Saw, Triangle, Square) Octave, Pitch, Shape
Modulation: Sync, Ring, Cross Mod Depth
Multi Engine: Noise/VPM/User, Type
Mixer: VCO1, VCO2, Multi
VCF: Cutoff, Resonance, Drive, Keytrack
AMP Envelope Generator: Attack, Decay, Sustain, Release
Envelope Generator: Attack, Decay, EG INT, Target, (Pitch, Pitch2, Cutoff)
LFO: Wave (Saw, Triangle, Square) Mode (BPM, Normal, 1-shot) Rate, Int, Target (Pitch, Shape, Cutoff)
Main effect Parameters: Effect type (Modulation, Reverb, Delay), ON/OFF, Time, Depth
Noise Generator: 4 types
VPM oscillator: 16 types
User oscillator: 16 slots
CHORUS: 8 types
ENSEMBLE: 3 types
PHASER: 8 types
FLANGER: 8 types
DELAY: 12 types
REVERB: 10 types
Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob
Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
Multi engine section: 7 segments x 6 digit LED display
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
CV IN 1, CV IN 2 jacks (3.5 mm [1/8″] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
SYNC IN jack (3.5 mm [1/8″] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8″] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
Damper jack (half damper is not supported)
Power Supply: AC adapter (DC9 V) (included)
Power Consumption: 8 W
Dimensions (W x D x H): 500 mm x 300 mm x 85 mm / 19.69″ x 11.81″ x 3.35″
Weight: 2.8 kg / 6.17 lbs.
Product code: MINILOGUE-XD
