Beskrivelse
Smooth and rapid sampling editing
Equipped with a vivid OLED screen, the SP-404MKII allows you to edit and chop samples with ease, with a crisp zoomable waveform view. Use the knob controllers to manually slice samples or have the SP-404MKII does the work for you with ‘Auto Chop’. You can then use envelope and pitch shift controls to manipulate and rework them. With a new and improved resampling workflow, you can create powerful layered sounds using the new re-recording feature, so you can stack patterns and effects.
Ever created a sequence and forgot to hit record? Skip Back Sampling allows you to capture inspired moments. The sampler provides the ability to recall up to 25 seconds of audio from your most recent performance so you’re always ready to capture inspiration when it strikes. The MKII features 16GB of onboard storage, pre-loaded with a massive variety of hand-picked samples, so you can get making beats straight away. It also features a mic/guitar input so you can sample vocals and instruments. You can also collaborate with your friends and other artists using the dual headphone outputs.
All the classic effects, and more!
The original SP-404 was renowned for its unique warm sound and unique effects that gave the 404 its own distinct character. All the classic SP effects are back as well as a wide variety of new additions. Legacy staples such as the DJFX Looper and Vinyl Simulator make a return as well as the introduction of Lo-Fi and Cassette Simulator. There is also a range of effects designed for use with the mic/guitar input including a Vocoder, Auto-Pitch and a Guitar Amp Simulator. All these new additions open up a whole new world of sampling opportunities.
Enhanced sequencing
With a new and improved design, the SP404MKII features a ton of new sequencing features allowing you to create patterns with their own unique flavour. You can utilise multiple samples with a simple tap via Pad Link or adjust the way the samples play using the input quantize and shuffle controls. The classic Roll button allows for variable note repeats – perfect for hi-hats rolls and live sets. Organising your patterns has been made easier as well, allowing you to chain patterns together for automatic playback.
Customise your SP-404
The ever-growing SP community is renowned for personalising their hardware and now you have all the tools you need to do it! You can download a faceplate template for the SP-404MKII so you can create your very own custom overlay. You can also personalise your startup screen with your own logo or other images. Your screensaver can also be customised for added fun.
Expanded controls and workflow with dedicated SP-404MKII app
The SP-404MKII has its very own app, available from Roland Cloud Manager. This powerful app provides a wide range of enhanced controls including a large sample waveform viewer, a pad matrix and the ability to import/export files with ease. Got old project files from the original SP-404? You can use the app to convert them to the new MKII format so you can revisit your projects with the new hardware.
Features

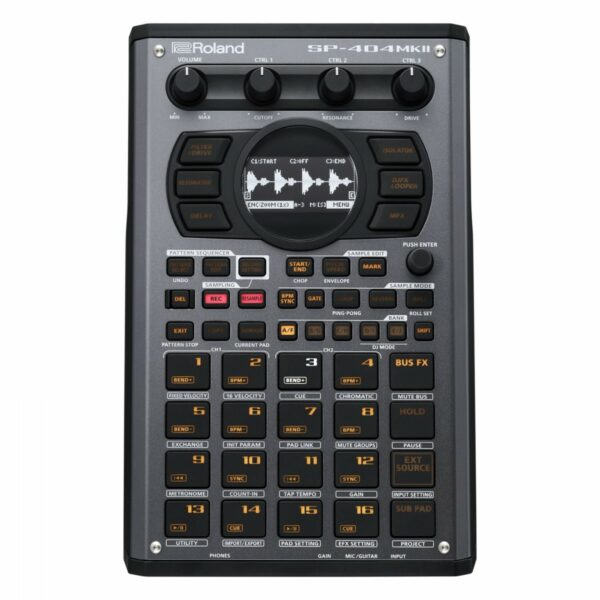

Crisp new OLED display for visual waveform editing
New and improved workflow with easy menu access, quick startup and quick speedy load times
17 velocity-sensitive RGB pads with ‘no-click’ design
All the classic SP effects are back with new additions:
Lo-Fi
Cassette Simulator
Resonator
Vocoder
Auto Pitch
Guitar Amp Simulator
Chain patterns together to playback in order, trigger multiple samples with one tap and new enhancing sequencing capabilities
16 GB onboard storage, pre-loaded with a massive collection of 144 unique samples and patterns
Low latency pads for rapid sample editing
32-voice polyphony
SP-404MKII editor software available via Roland Cloud Manager
Can be powered via USB, 6x AA batteries or AC adaptor
Customise your faceplate, startup screen and screensaver
Specifications
Maximum Polyphony: 32 voices
Recordable Data:
Samples: 2,560 (16 samples x 10 banks x 16 projects, stored in internal storage)
Patterns: 2,560 (16 patterns x 10 banks x 16 projects, stored in internal storage)
Internal Storage: 16 GB (Including preload data)
Maximum Sampling Time: 16 minutes (approximately 176 MB per sample)
Skip Back Sampling: 20 seconds (capturing the last moments of performance)
Data Format: 16-bit linear WAV, AIFF, MP3 import supported (SP-404MK2APP supports WAV, AIFF, MP3, FLAC, M4A)
Sampling Frequency: 48kHz
Pattern Sequencer:
Resolution: 480 ticks, quarter note
Pattern Length: 1 to 64 bars
Recording method: Realtime Loop Recording
Effects:
Multi-effects: 37 types
Input Effects: 2 types
Pad: 16 pads + 1 sub pad (Velocity-sensitive pad)
Controller: Control knobs x 3
Display: Graphic OLED display
External Storage: SD card (sold separately) for backup, restore, import, and export functions (SDHC compatible)
Connection Terminals:
PHONES jacks: 1/4-inch phone type, Stereo miniature phone type
LINE OUT (L/MONO, R) jacks: 1/4-inch TRS phone type (impedance balanced)
LINE IN (L/MONO, R) jacks: 1/4-inch phone type
MIC/GUITAR IN jacks: 1/4-inch TRS phone type (for MIC), 1/4-inch phone type (for GUITAR)
MIDI (IN, OUT) jack: Stereo miniature phone type
USB terminal: USB Type-C (Audio, MIDI)
DC IN terminal: x1
Power Supply:
AC adaptor
USB bus power supply (USB Type-C port, 1.5 A or more)
Ni-MH batteries (AA, HR6)(sold separately) x 6
Alkaline battery (AA, LR6)(sold separately) x 6
Current Draw:
AC Adaptor: 1,100 mA
USB Bus Power: 1,500 mA
Expected battery life under continuous use:
Alkaline Battery: Approx. 2.5 hours
Ni-MH Battery: Approx. 3.5 hours
Please Note: This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use
External Dimensions: 177.5 (W) x 275.8 (D) x 70.5 (H) mm7 (W) x 10-7/8 (D) x 2-13/16 (H) inches
Weight (excluding AC adaptor): 1.1 kg (2 lbs, 7 oz)
Accessories:
Quick start
«Read Me First» leaflet
Roland User Registration Card
AC adaptor
Warranty card
Options (sold separately): TRS/MIDI connecting cable: BMIDI-5-35
